502T/504T/507T
502T/504T/507T 1
502T/504T/507T 2
502T/504T/507T 3
502T/504T/507T 4
502T/504T/507T 5
502T/504T/507T 6
502T/504T/507T 7
502T/504T/507T 8

502T/504T/507T

Powered by a high-performance Intel® Core™ i or Pentium® processor, the 502T/504T/507T medical all-in-one system features a 21.5”/24”/27” TFT-LCD and a fanless, slim, and bacteria-resistant enclosure, making it ideal for various medical and healthcare applications. While the space-saving design makes the Medical-Grade Integrated LCD System easily fit into any point-of-care scenarios, its built-in Wi-Fi and BT connectivity further enables health professionals to effortlessly and efficiently monitor, record and manage patient data.

21.5"/24"/27" high-resolution touchscreen
Intel® Core™ i or Pentium® processor
Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu operating system
Elegant all-in-one, slim, fanless design with antimicrobial enclosure
VESA mounting compatibility for easy installation and optimized mobility
IP65-rated front panel with IPX2-rated enclosure
Energy Star 8.0 certified (504T)

CPU:
502T:
Intel® Pentium® Gold-G6400T, 2-Core, 3.4 GHz
Intel® Core™ i5-10500T Processor (up to 3.30 GHz)
Intel® Core™ i7-10700T Processor (up to 3.40 GHz)

504T/507T:
Intel® Pentium® Gold-G6400T, 2-core, 3.4GHz
Intel® Core™ i5-10500T, 6-core, 2.3GHz (up to 3.8GHz)
Intel® Core™ i7-10700T, 8-core, 2.0GHz (up to 4.5GHz)
Intel® Core™ i9-10900T, 10-core, 1.9GHz (up to 4.6GHz)
RAM:
8GB to 64GB
Storage:
256GB to 4TB Flash
Operating System:
Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu
Display:
502T: 21.5" Touchscreen
504T: 23.8" Touchscreen
507T: 27" Touchscreen
Display Resolution:
502T/504T: 1920 x 1080
507T: 1920 x 1080, or 3840 x 2160 (optional)
Battery Pack:

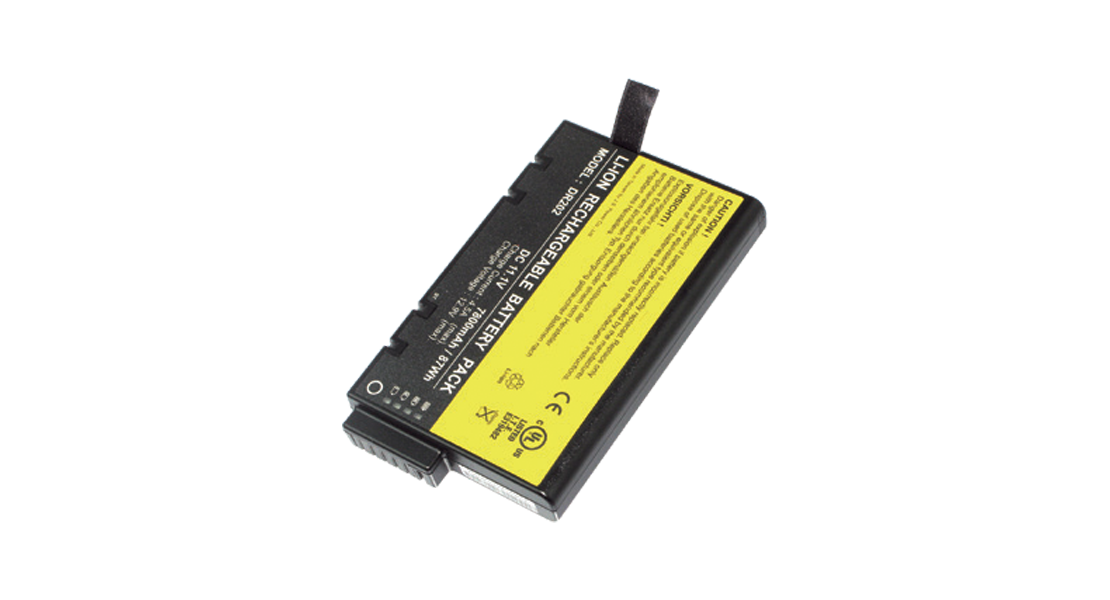

Optional integrated UPS battery x 1
WLAN:
Wi-Fi 802.11ax, 2.4/5 GHz Dual Band
BT:
Yes
Control Buttons:
1 x Power Button, 4 x Programmable Buttons
Speaker and Microphone:
Built-In Microphones & Speaker
